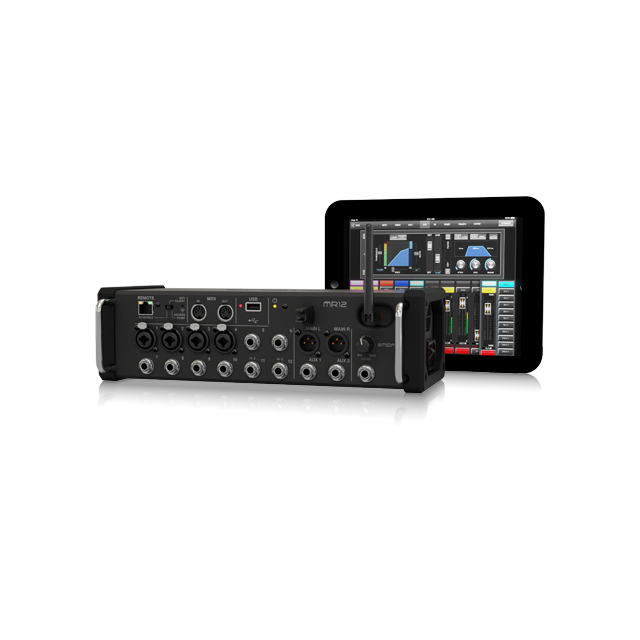

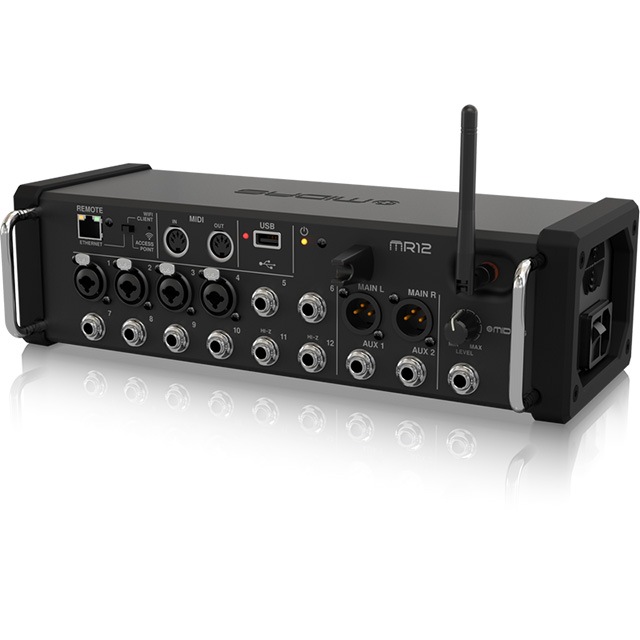

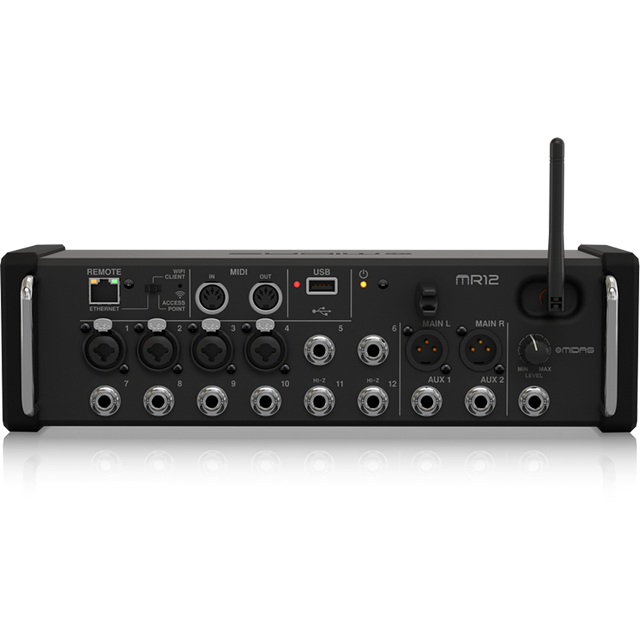

¢¡¥¹¥¿¥¸¥ª¤ä¥é¥¤¥Ö¡¦¥¢¥×¥ê¥±¡¼¥·¥ç¥ó¤ËºÇŬ¤Ê12 ÆþÎϥǥ¸¥¿¥ë¥ß¥¥µ¡¼¡£iPad/Android ¥¿¥Ö¥ì¥Ã¥È¤Ë¤è¤ë¥³¥ó¥È¥í¡¼¥ë¤òɸ½à
¢¡4 ¤Ä¤ÎMIDAS ¥Þ¥¤¥¯¥×¥ê¥¢¥ó¥×¤òÅëºÜ¡£¡ÊXLR ÆþÎÏ¡Ë
¢¡³°Éô¥ë¡¼¥¿¡¼¤òɬÍפȤ·¤Ê¤¤¡¢Æâ¢Tri-Mode WiFi ¥ë¡¼¥¿¡¼
¢¡Dugan-style Auto- ¥ª¡¼¥È¥Þ¥Á¥Ã¥¯¥ß¥¥µ¡¼µ¡Ç½¤Ë¤è¤ë¡¢¥Þ¥¤¥¯¥²¥¤¥ó¤Î¥·¥§¥¢¥ê¥ó¥°¤¬²Äǽ
¢¡USB ¥³¥Í¥¯¥¿¡¼¤è¤ëÈ󰵽̥¹¥Æ¥ì¥ªWAV ¥ì¥³¡¼¥Ç¥£¥ó¥°/¥×¥ì¥¤¥Ð¥Ã¥¯¤¬²Äǽ
¢¡4¤Ä¤Î¥Ç¥¸¥¿¥ë¡¦¥·¥°¥Ê¥ë¥×¥í¥»¥Ã¥·¥ó¥°¤ò»ý¤Ã¤¿¥¨¥Õ¥§¥¯¥È¡¦¥¨¥ó¥¸¥ó
¢¡¥é¥Ã¥¯¥Þ¥¦¥ó¥È¤ä¥¹¥Æ¡¼¥¸¾å¤Ç¤Î»ÈÍѤò¹Íθ¤·¤¿¥é¥Ã¥¯¥¢¥ó¥°¥ë¤È¥×¥í¥Æ¥¯¥È¡¦¥Ð¥ó¥Ñ¡¼¤òÅëºÜ
¢¡2¤Ä¤ÎTRS AUX ½ÐÎϤÈ2¤Ä¤ÎXLR ¥á¥¤¥ó½ÐÎÏ¡¢¥Ø¥Ã¥É¥Õ¥©¥ó¥³¥Í¥¯¥¿¡¼¤òÅëºÜ
¢¡40 bit floating point ¥Ç¥¸¥¿¥ë¡¦¥·¥°¥Ê¥ë¥×¥í¥»¥Ã¥·¥ó¥°
¢¡Ethernet LAN ¤Þ¤¿¤ÏWiFi ¤ò·Ðͳ¤·¤ÆiOS¡¢Android¡¢PC/Mac/Linux¥¢¥×¥ê¤ò»È¤Ã¤Æ¥ê¥â¡¼¥ÈÁàºî²Äǽ
¢¡MIDI In/Out ¤Ï¡¢MIDI µ¡´ï¤Ë¤è¤Ã¤Æ¥ß¥¥µ¡¼¤òÀ©¸æ¤¹¤ë¤³¤È¤ò²Äǽ¤Ë¤·¤Þ¤¹
¢¡¿·¤·¤¤¥Õ¥¡¡¼¥à¥¦¥§¥¢¡¦¥¢¥Ã¥×¥Ç¡¼¥È¡Ê¿·¤·¤¤FX¡Ö¥×¥é¥°¥¤¥ó¡×¤ò´Þ¤à¡Ë¤Ï¡¢ÌµÎÁ¤Ç¥À¥¦¥ó¥í¡¼¥É²Äǽ
¢¡¥ª¡¼¥È¥ì¥ó¥¸¡¢¥æ¥Ë¥Ð¡¼¥µ¥ë¡¦¥¹¥¤¥Ã¥Á¥â¡¼¥É¡¦¥Ñ¥ï¡¼¥µ¥×¥é¥¤
¡ÚSpec¡Û
Processing
¢¡Number of Processing Channels
12 Input Channels, 1 Stereo USB Return Channels, 4 Stereo FX Return Channels, 2 aux buses, main L/R
¢¡Internal Effects Engines
4 true Stereo
¢¡Signal Processing
40-Bit Floating Point
¢¡Analog I/O latency
0.8 ms
Connectors
¢¡Mic / Line
4 XLR / TRS combo jacks,balanced, 6 TRS
¢¡Line inputs
2 TRS, balanced
¢¡Main outputs
2 XLR, balanced
¢¡Aux outputs
2 TRS, balanced
¢¡Phone outputs
1 TRS
¢¡MIDI Inputs / Outputs
1/1 DIN
¢¡Ethernet
1 RJ45
¢¡USB
Type A
Mic Input Characteristics
¢¡Preamp design
MIDAS PRO
¢¡THD + noise, unity gain, 0 dBu, 1 kHz
0.005%, unweighted
¢¡Phantom power, switchable per input
48 V
¢¡EIN noise, at +60 dB gain, 150R source
-125 dBu, 22 Hz - 22 kHz unweighted
¢¡CMRR, XLR, 1 kHz @ unity gain
Typically 65 dB
¢¡CMRR, XLR, 1 kHz @ +60 dB gain
Typically 90 dB
Input/Output Characteristics
¢¡Frequency range,@48 kHz sample rate, +/- 0.5dB
20Hz - 20kHz
¢¡Dynamic range, analog in to analog out
107 dB, 22 Hz - 22 kHz unweighted
¢¡A/D dynamic range, preamp to converter
110 dB, 22 Hz - 22 kHz unweighted
¢¡D/A dynamic range, converter and output
111 dB, 22 Hz - 22 kHz unweighted
¢¡Cross talk rejection @ 1 kHz, adjacent channels
90 dB
¢¡Mic/Line 1-16 Input impedance XLR jack, unbal. / bal.
10 k¦¸
¢¡Non clip maximum input level, XLR
+23.5 dBu
¢¡Hi-Z input impedance TRS jack, unbal. / bal.
1 M¦¸ / 2 M¦¸
¢¡Line input 5-10 impedance TRS jack, unbal. / bal.
20 k¦¸ / 40 k¦¸
¢¡Non clip maximum input level, TRS
+21 dBu
Output Characteristics
¢¡Output impedance, XLR
50 ¦¸
¢¡Maximum output level, XLR
+21 dBu
¢¡Aux 1-2 output impedance, TRS
50 ¦¸
¢¡Aux 1-2 maximum output level, TRS
+21 dBu
¢¡Phones output impedance
50 ¦¸
¢¡Maximum phones output level
+21 dBu
¢¡Noise @ unity gain, 1 input assigned, XLR and TRS
-86 dBu, 22 Hz - 22 kHz unweighted
¢¡Noise when muted, XLR and TRS
-90 dBu, 22 Hz - 22 kHz unweighted
WLAN Module
¢¡Antenna
External, SMA connector, 50¦¸
¢¡Access Point, number of clients
Max. 4
¢¡IEEE 802.11 b/g standard
2.4 GHz
¢¡Frequency Range
2412-2462 MHz
¢¡WLAN channels (Wifi Client, Access Point)
1-11
¢¡Max Output Power
19 dBm (802.11 b) / 18 dBm (802.11 g)
Power
¢¡Switch-mode power supply
Autorange 100-240 V, (50/60 Hz)
¢¡Power consumption
30 W
Physical
¢¡Standard operating temperature range
5¡ëC - 40¡ëC (41¡ëF - 104¡ëF)
¢¡Dimensions
333 (W) x 149 (D) x 95 (H) mm
¢¡Weight
2.9 kg
